Welcome to Custom Fab Shop

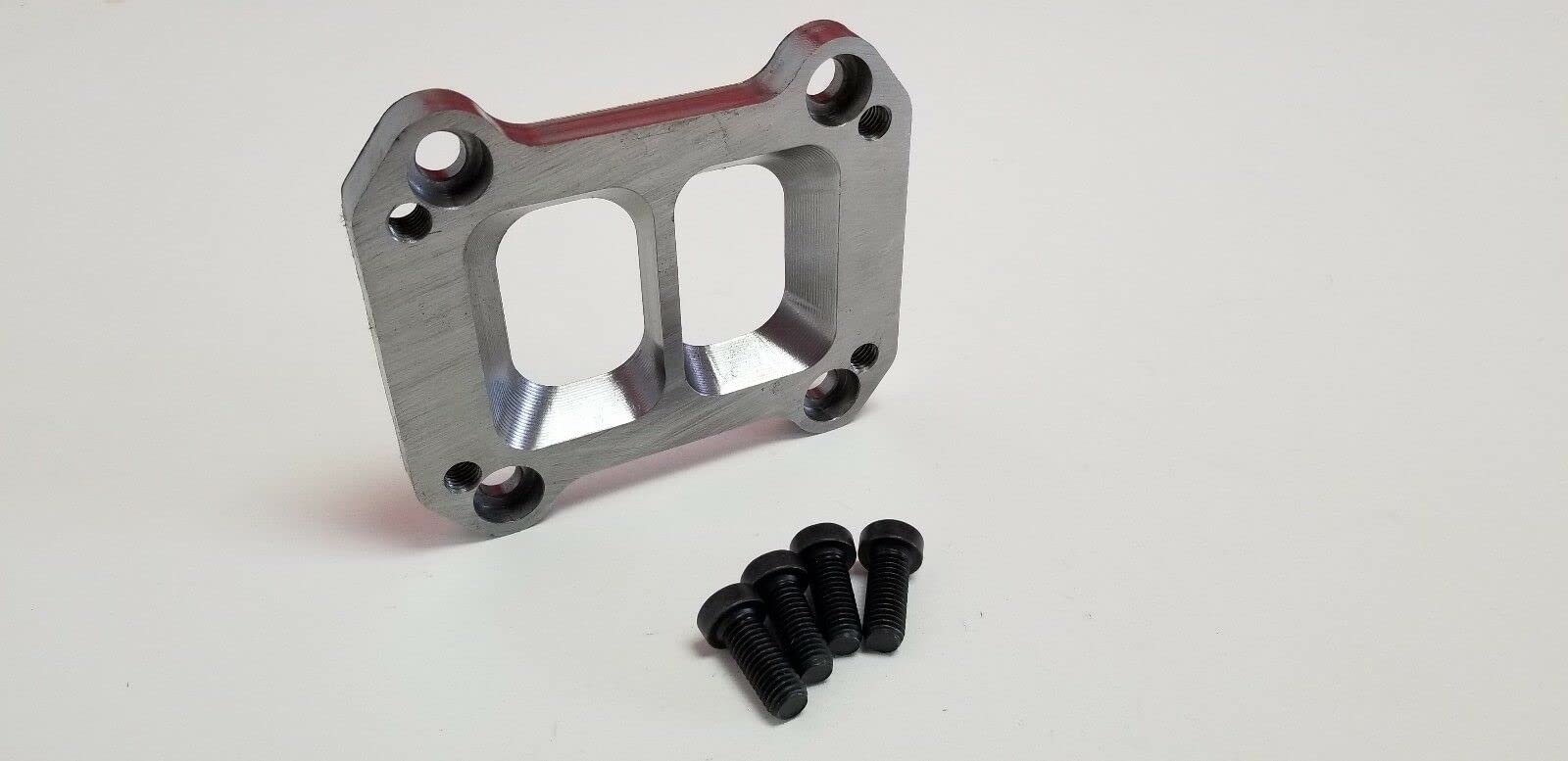

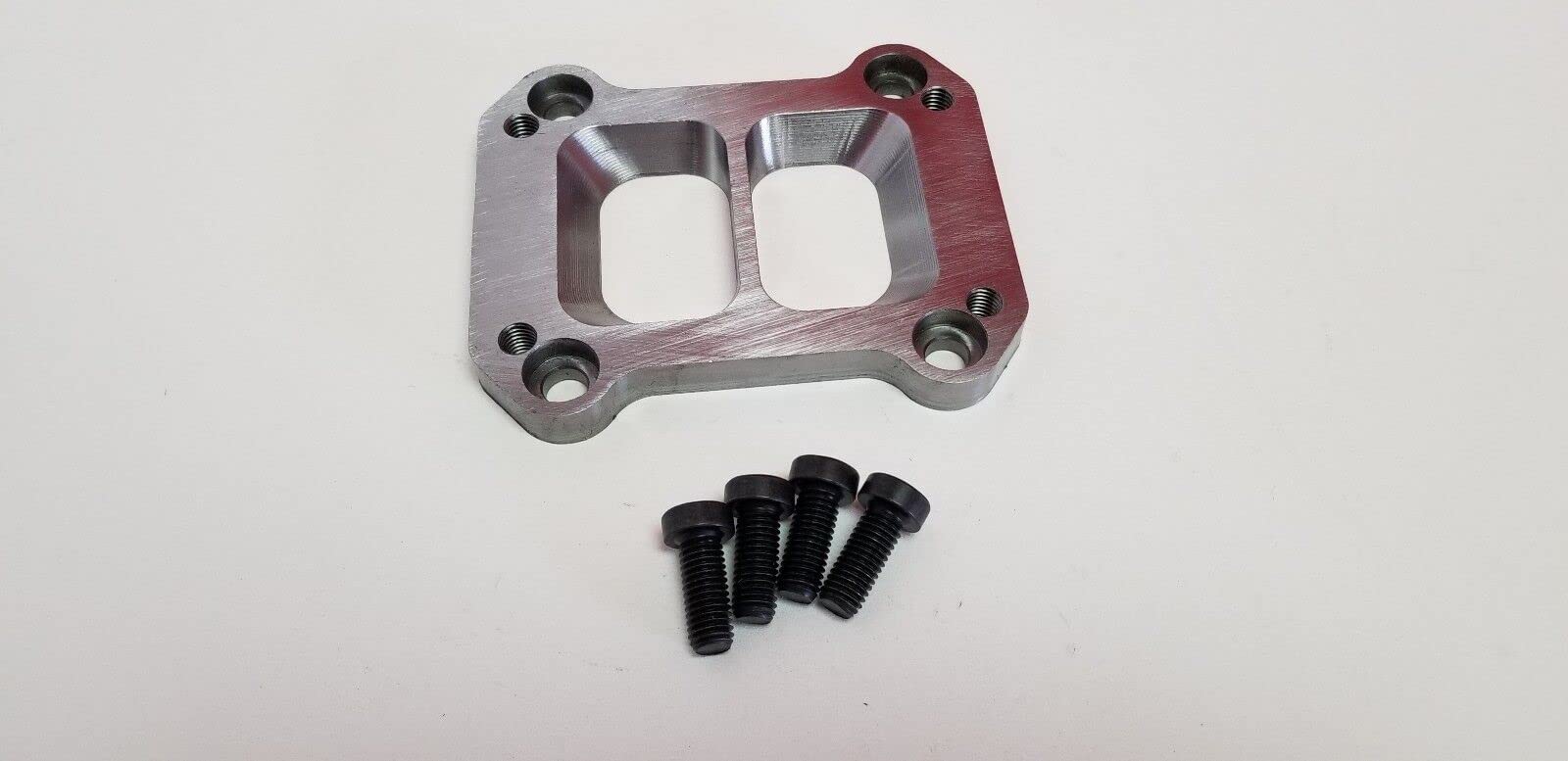

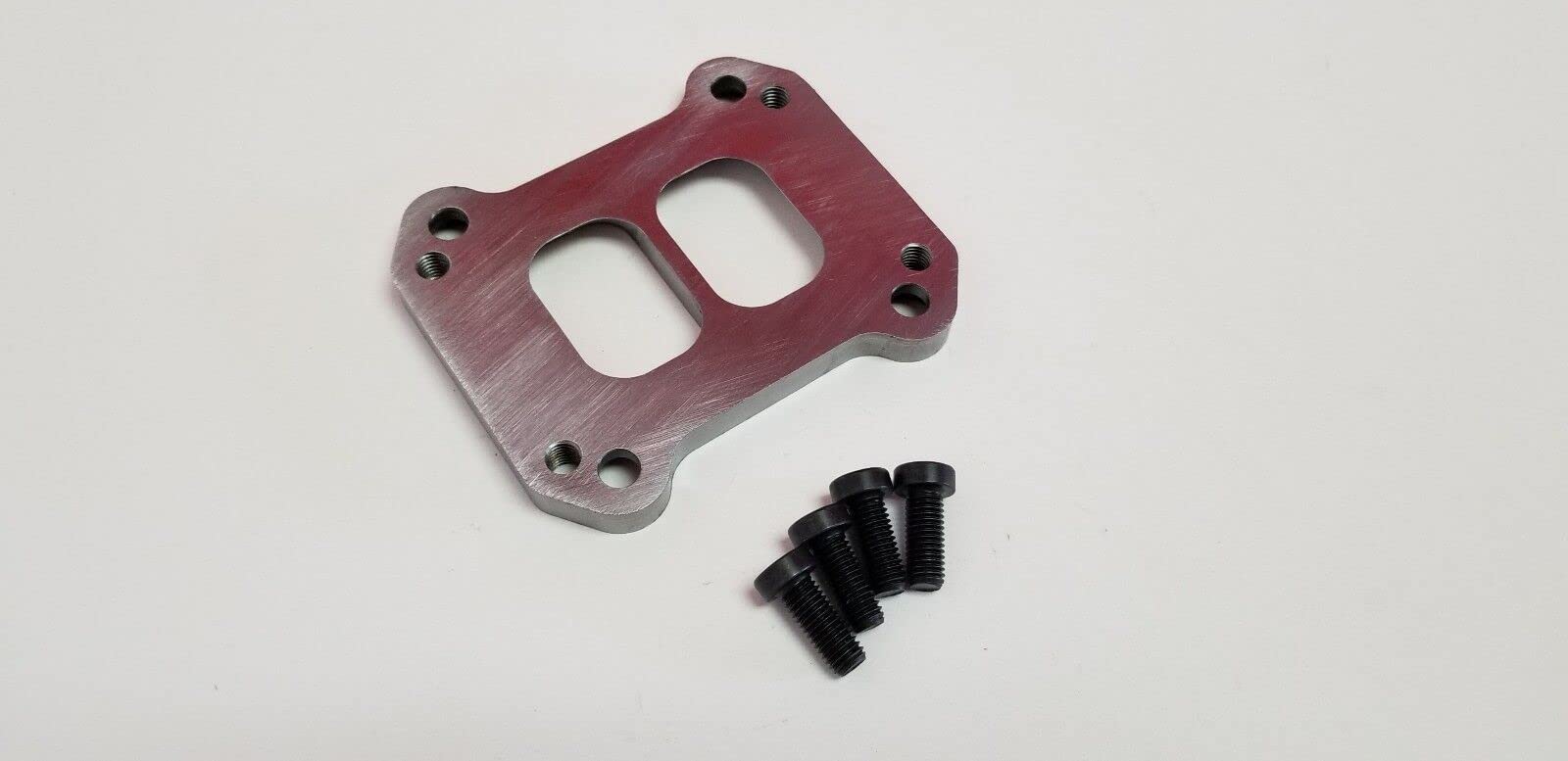

Part Specification:

• Material: Mild Steel 1018CR Billet ( not Cast )
• Thickness: .500″ (12.7mm)
• HX55 Bolt Diameter: Holes are M10 x 1.5mm Thru Holes Countersunk
• HX55 Bolt Spacing:   3.54″ x 3.64″ (90mm x 93mm)
• HX55 Port Shape: Divided Twin Scroll Ports
• T6 Inlet Bolt Diameter: M10 x 1.50mm Threaded
• T6 Inlet Bolt Spacing: 2.75″ x 4.44″ (70mm x 112mm)
• T6 Port Shape: Divided Twin Scroll Ports
• Fitment: Used to Bolt a T6 Divided Turbocharger to an HX55 Wastegated Manifold
• Notes: Gaskets NOT included in listing
