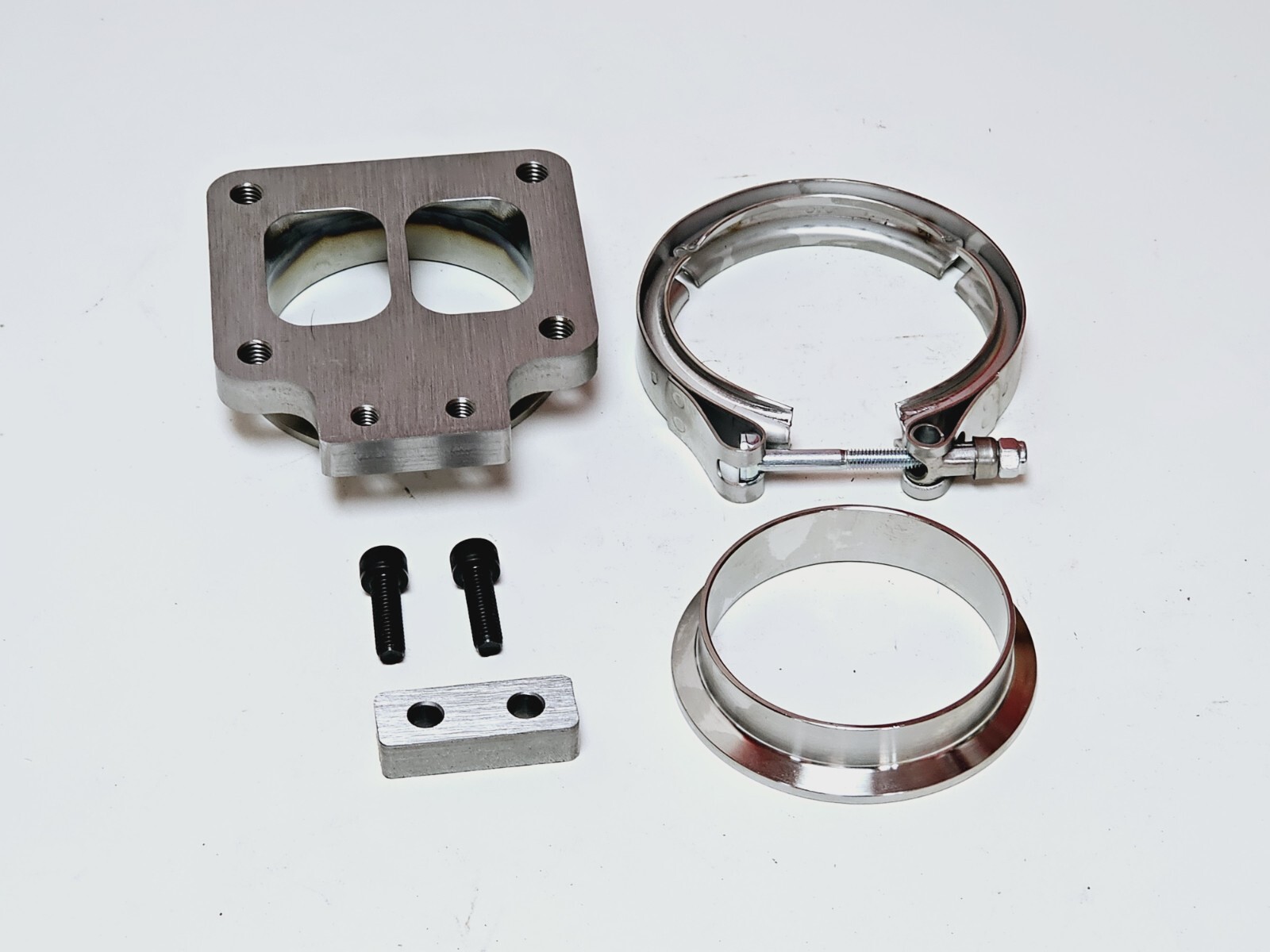

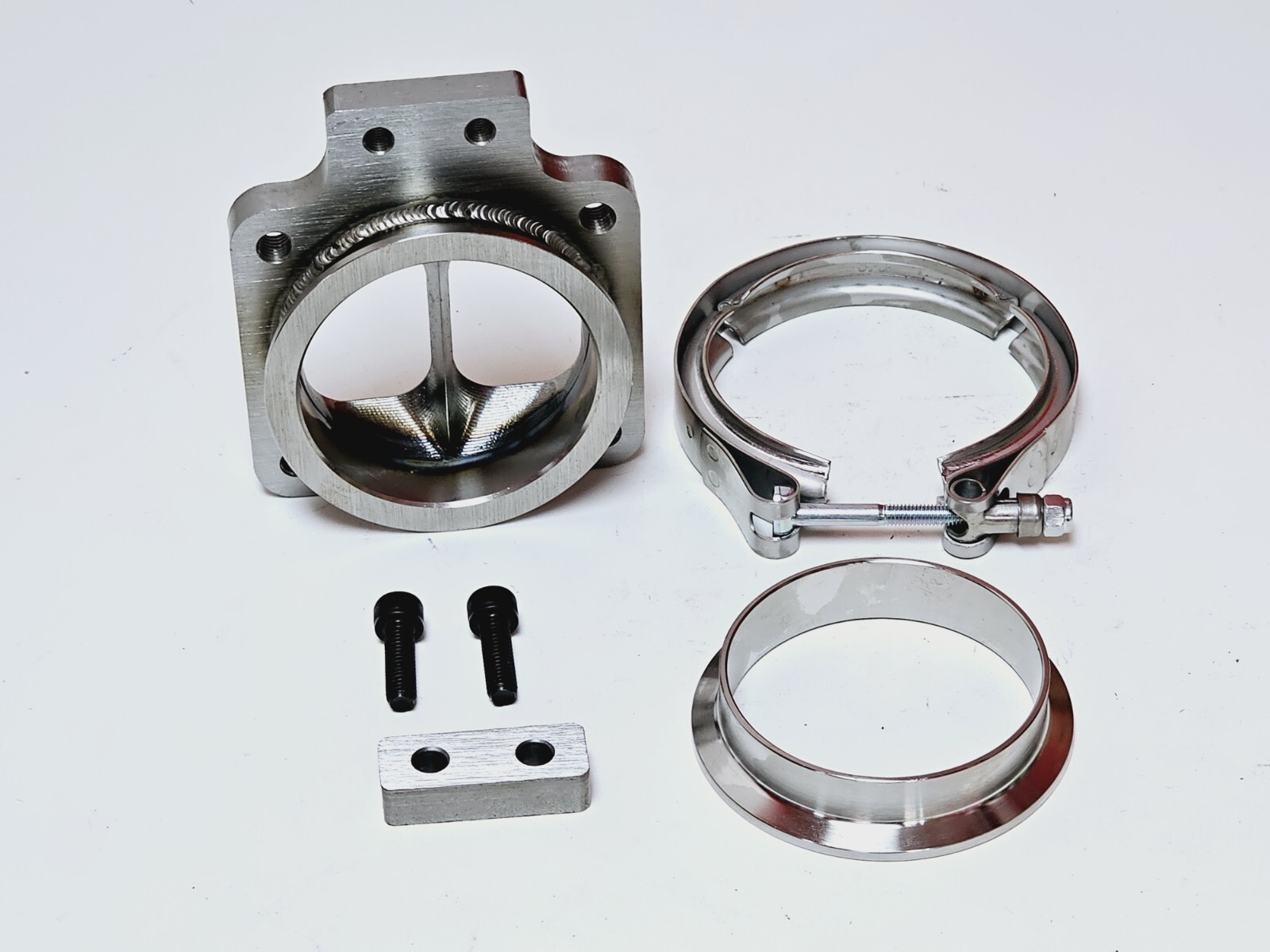

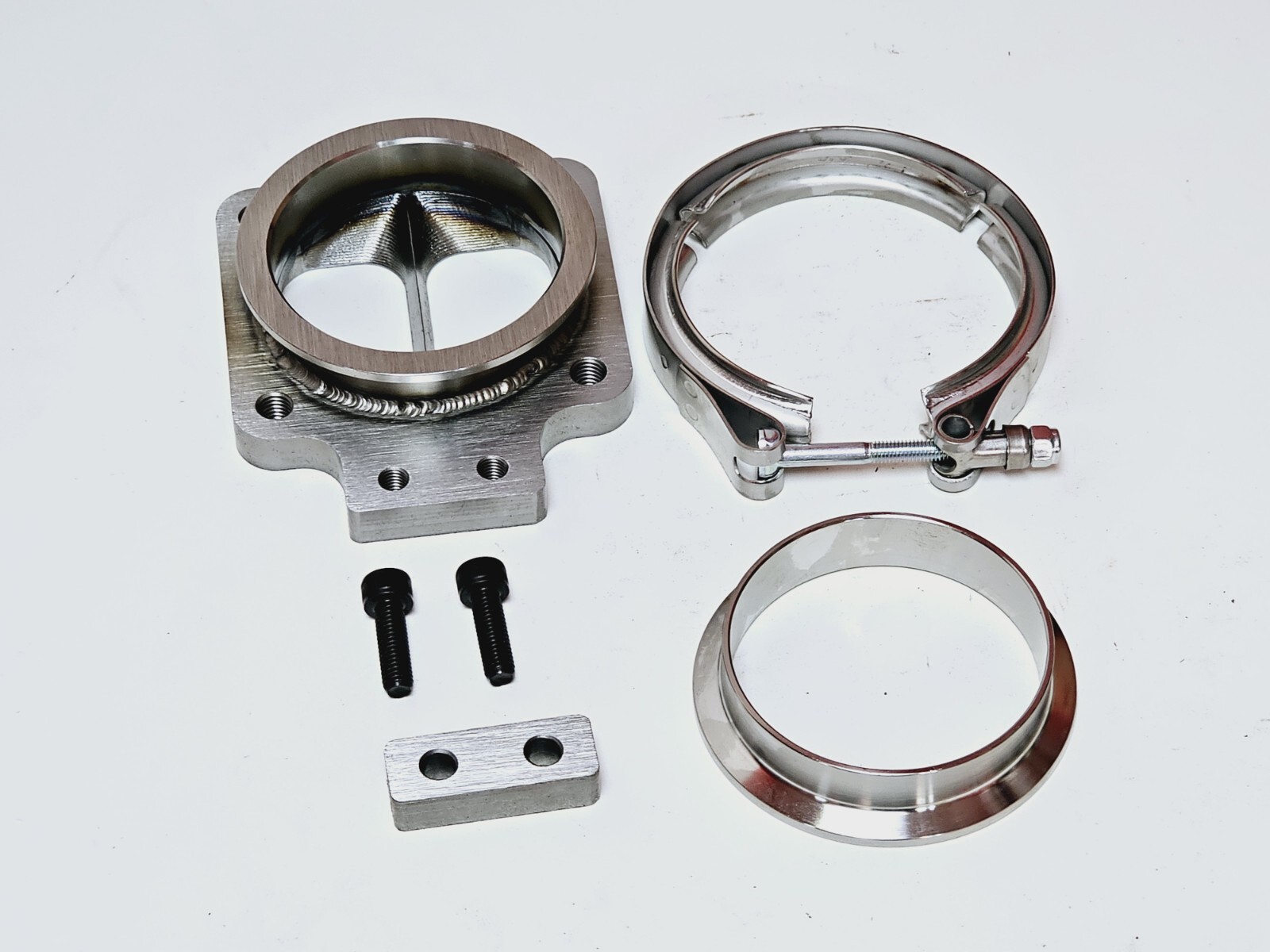

T4 Divided to 3.0" ID V-band Inlet Turbo Transition Adapter Flange Support Tab

Welcome
to Custom Fab Shop

  All our products are CNC milled using the
latest CAD/CAM programs which are built in house on 3 and 4 axis high precision
machinery. We offer the billet flanges in custom thickness and even custom
application transitions for easier fab work or building your own DIY kits. We
guarantee our products and service if you are not satisfied return the product
and receive the purchase price refund. We machine out adapters and flanges with
the industry standards by using USA certified materials to resist warping and provides
excellent weldabilty. The turbo adapters’ ports are all ballmilled to improve
flow smoothly from one port shape to the other reducing resistance and turbulence. We also even go
the extra distance to sand down the machine waves using a hatch cross pattern
to improve sealing.

Feel
free to contact us we have over hundreds of flanges in
our system for adapting to most applications plus no setup charge...

Part
Specification:

• Material:  Mild Steel 1018 CR ( not Cast )

• Thickness: 1/2 inch (.500″) or (12.7mm)
• T4 Inlet Bolt Diameter: M10 x 1.50mm Threaded Holes
• T4 Inlet Bolt Spacing: 2.75″ x 3.25″ (70mm x
  82mm)
• T4 Port Shape:  Twin Scroll Divided Ports Transitioned to 3.0 inch Vband Kit
• V-band Size: 3.75″ OD / 3.00″ ID
• Fitment: Used to add a T4 Divided turbocharger on a 3 inch exhaust system. Also has support tabs to assist on weight.
• Notes: Bolts and Gaskets NOT included in listing

(We now are offering Stainless Steel
304L flanges in all our current flanges or even custom….Contact us)

Also carry Turbos for all
applications check Ebay Store……Turbocharger
